Outdoor low-voltage lighting systems depend on more than just fixtures. Proper planning ensures that fixtures receive the correct power, run safely, and deliver consistent lighting performance in the field.
This guide walks through the key steps contractors and system designers use when preparing for installation.

1. Selecting Your Fixtures

Begin with lighting design intent:

✔ Color temperature (e.g., 2700K warm vs. 4000K neutral)
✔ Beam spread (e.g., spot vs. flood)
✔ Lumen output for each application
✔ Fixture type:
— Drop-in lamp
— Integrated LED
— Adjustable integrated LED (Variable Lumen Output / VLO)

For each fixture, record the Wattage and VA (Volt-Amperage).
These two values will later determine system load.

2. Calculating Total System Load

Add the VA values of all fixtures in the system:

Total System Load (VA) = Sum of all fixture VA

This number is used to size the transformer.

Example:
If a project totals 300 VA, you will need a transformer with ≥ 300W capacity.

3. Choosing the Right Transformer

A transformer for landscape lighting should meet both electrical and installation requirements.

Electrical considerations:

✔ Total VA load must not exceed transformer wattage
✔ Multiple tap voltages (12V / 13V / 14V / 15V) help compensate for voltage drop
✔ Supports accessory controls (timer / photocell / smart control)

Installation placement guidelines:

✔ Indoor or outdoor mounting allowed
✔ Within 8 ft of a GFCI outlet
✔ Ideally on a dedicated breaker
✔ At least 12” above ground level
✔ At least 10 ft from pools or ponds
✔ Conduct wires through electrical conduit and bury 6” underground for NEC compliance

4. Control Options for Low-Voltage Systems

Common options include:

• Photocell — Lights turn on at dusk, off at dawn
• Mechanical Timer — Pin-based on/off scheduling
• Digital Timer — Weekly programmable + daylight savings auto adjustment
• Smart Control (Wi-Fi) — Phone-based scheduling & remote control

5. Calculating Voltage Drop (Critical Step)

Voltage drop must be calculated for each cable run to ensure stable operation.
Use the standard formula:

Voltage Drop = (2 × Cable Length × Total VA on Run) / Cable Constant

Then:

End Fixture Voltage = Transformer Tap Voltage – Voltage Drop

Key variables:

• Cable Length → in feet

• Total VA on Run → sum of fixtures per run

• Cable Constant → based on wire gauge (e.g. 12 AWG recommended)

• Transformer Tap Voltage → 12V, 13V, 14V, or 15V

Target: End fixture voltage should be >10V for proper performance.

If voltage is <10V, you may need to:

✔ Increase tap voltage
✔ Reduce load per run
✔ Increase wire gauge size

6. Installation Tips

To simplify wiring and troubleshooting:

✔ Label wire runs using colored tape “flags”
✔ Record each run’s VA load & location
✔ Verify fixture voltage range (typically 9–15V)
✔ Fully open terminal screws before inserting wire
✔ Confirm strong mechanical connection

Recommended tools:

• Volt meter
• Wire strippers
• Drill + anchors
• Tape measure
• Screwdriver
• GFCI outlet access
• Conduit for underground runs

7. Final Check Before Energizing

Before powering up, confirm:

✔ Transformer capacity ≥ load
✔ Voltage drop calculated
✔ Wire gauge selected
✔ Fixtures within voltage tolerance
✔ Controls installed correctly
✔ All connections secure

A properly designed system prevents:

— Flickering
— Uneven brightness
— Overheating
— Premature failure
— Warranty claims & callbacks

âš  Disclaimer

Voltage drop calculations are provided as a reference. Actual system performance should be verified using a voltmeter during installation.

📌 Why This Matters

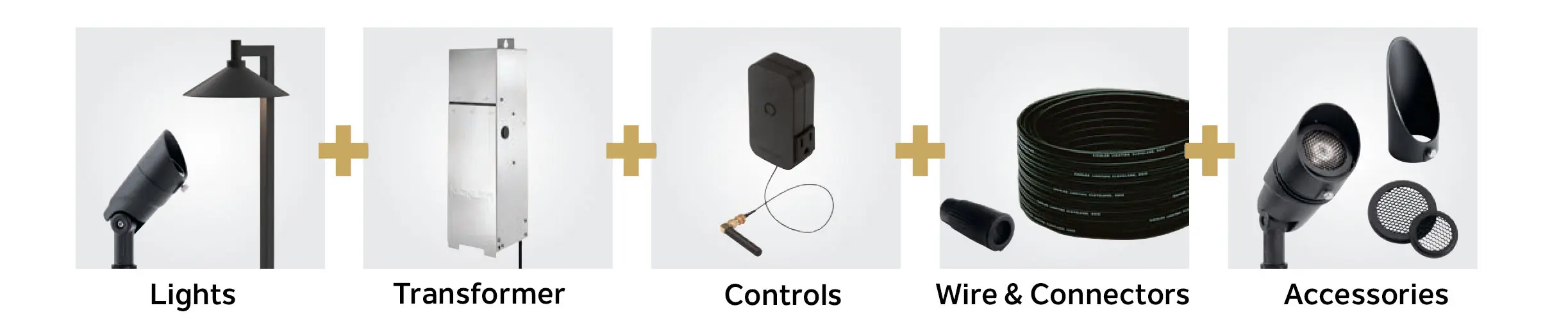

Outdoor lighting performance is largely determined by system integration, not individual components.
Fixtures, transformers, wiring, and load distribution must work together to deliver consistent, long-term results.
